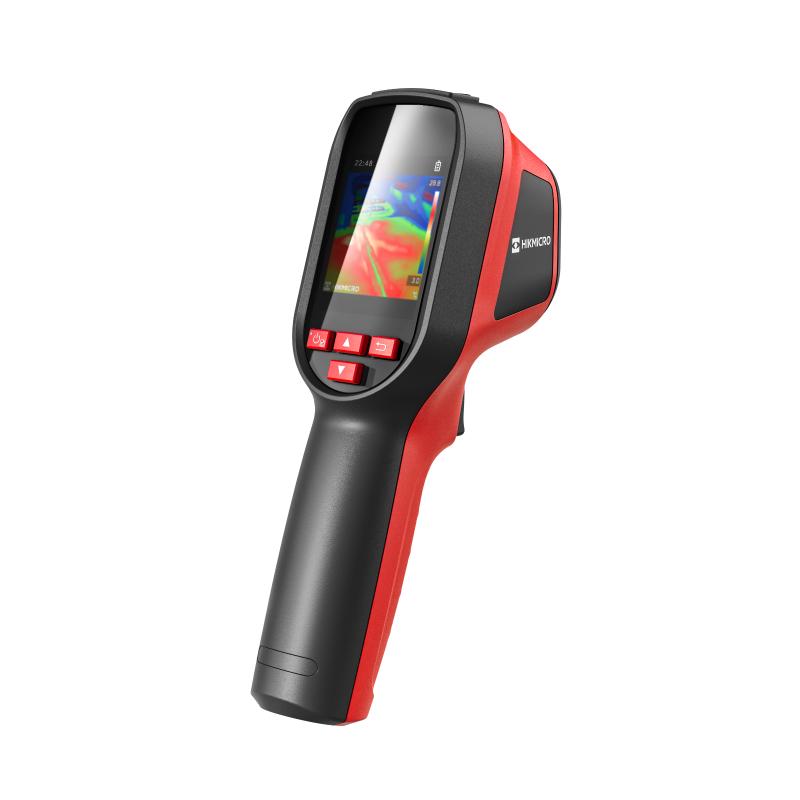

HIKMICRO Eco-Lite Handheld Thermal Camera

HIKMICRO ECO-Lite

Visual Thermometer, Clear for All

Visual Thermometer Display

Forget single-point checks. Replace boring numbers with visuals, revealing every insulation flaw in real-time on the full screen.

Dual-Mode Live Tracking

Prefer using a thermometer? No problem. Both modes support continuous real-time tracking of temperature fluctuations.

Multi-Scenario Versatility

One tool, multiple uses: From home kitchens and HAVC repairs to car maintenance, it effortlessly handles all your everyday inspection tasks.

Broad Temperature Coverage

Covering a vast range from -20°C to 550°C, no daily temperature anomaly is beyond your sight.
*-20°C to 550°C Temperature Range

High/Low Temperature Alarm

Add an alarm function your thermometer never had - know instantly when oven temperatures get too high.

High Precision Measurement

The exceptional thermal imaging sensor captures the slightest temperature changes as small as 0.05°C.

Enhanced IR Resolution

The 96×96 IR resolution displays temperatures for 9,216 pixels at once, paired with detail enhancement algorithms to improve image detail.

50°×50° Wide FOV

The 50°×50° wide-angle view allows you to quickly scan the entire floor, detecting underfloor heating with unparalleled efficiency.

25 Hz Smooth Imaging

With 25Hz smooth imaging technology, moving objects can be accurately captured, bidding farewell to the era of detecting one point every few seconds.

Flexible Color Options

5 distinct color palettes are at your fingertips. Highlight critical temperature differences stand out in any condition.

Customizable Measurements

Customize the emissivity, distance, and temperature measurement range for any object. Ensure every reading accurately reflects reality.

Long-Lasting Battery

3350 mAh built-in battery, 14-hour rechargeable battery life powers through long inspections, from all-day home checks to extended repair jobs on-site.

Rugged and Reliable

Built to withstand tough conditions, whether on a rainy yard or in a dusty workshop.

Lightweight and Portable

Ultra-lightweight and compact, it goes wherever you do. The anti-slip handle and secure wrist strap keep it safe and ready in hand, anywhere.

What's in the Box

Eco Lite

Wrist strap

Quick Start Guide

USB-C to USB-A Cable

Package Box

Specification

Product Model

Check the product for comparison

Infrared Image

IR Resolution

NETD

Image Frequency

Detector Pitch

Spectral Range

Focal Length

F-number

Field of View (FOV)

Spatial Resolution (IFOV)

Focus Mode

SuperIR

Distance to Spot Ratio (D:S)

Min. Focus Distance

Image Display

Visual Camera

Display

Image Modes

Color Palettes

Measurement and Analysis

Object Temperature Range

Accuracy

Level and Span Mode

SuperScene Intelligent Detection

Alarm Linkage

Temperature Measurement Mode

Alarm

Data Storage and Communication

Storage Media

Image Storage Capacity

Video Storage Capacity

Radiometric Infrared-Video Streaming (Compressed)

General

USB Interface

Battery Type

Battery Operating Time

Battery Charging Time

Protection Level

Drop Test Height

Working Temperature Range

Storage Temperature Range

Relative Humidity

Weight

Dimension

Tripod Mounting

Laser

Eco-V

96 × 96 (9,216 pixels)

< 50 mK (@ 25 °C, F#=1.0)

25 Hz

12 μm

7.5 to 14 μm

1.35 mm

F1.0

50° × 50°

8.89 mrad

Focus Free

240 x 240 (57,600 pixels)

112:1

0.1m (0.33 ft)

640 × 480

240 × 320 Resolution, 2.4”LCD Screen

Thermal/Visual/Fusion

White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion, Blue Yellow

Range -20°C to 150°C (-4°F to 302°F)
Range 100℃ to 550℃ (212°F to 1022°F)

Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and object temperature above 0°C (32°F)

Auto/Manual

Water Leak Scene，Insulation Scene

Alarm Mode Palettes

Thermometer mode， Measurements presets (center spot,Max spot,Min spot,off)

More than, Less than

Built-in 4G eMMC (user available storage space is less than the nominal capacity)

Approx. 30,000 Images

Approx. 10.5 hours

Over UVC

USB Type-C

Rechargeable Li-ion battery

Approx. 8 hours

Approx. 3 hours fully charged(Adapter Output：5 V 2 A )

IP54

2 m (6.56 ft)

-10 °C to 50 °C (14 °F to 122 °F)

-40 °C to 70 °C (-40 °F to 158 °F)

< 95% non-condensing

Approx. 290 g (0.64 lb)

196 × 117 × 59 mm (7.7 × 4.6 × 2.3 in)

UNC ¼”-20

Yes, Class II
